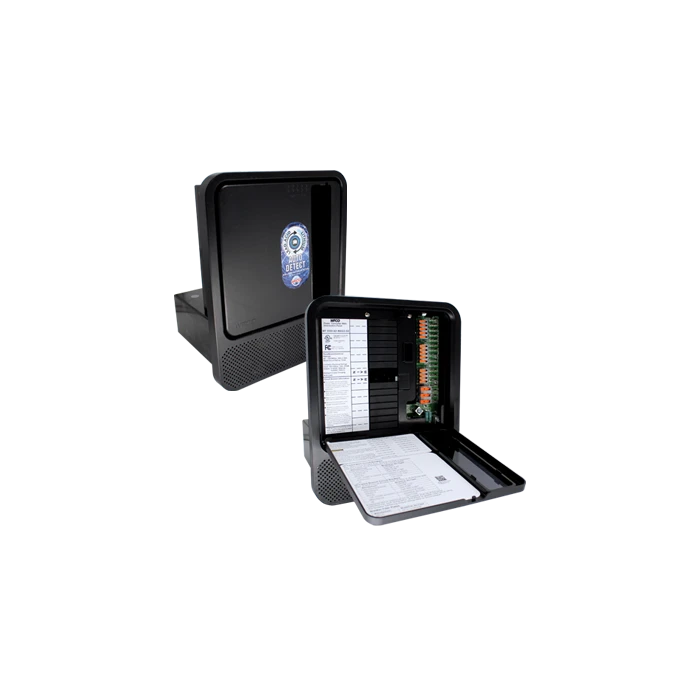

WFCO WF-9500 Series Three Stage Converter/Charge Power Converter

Every model is designed to comply with FCC Class B, which means that the converters do not cause interference with televisions, radios, or other signals. Exclusive Choice Of Three DC Circuit Connection Modes- Quick Connect Terminals, Screw Terminals, Or Wire Pigtails- Allows Installers To Select Their Preferred Wiring Connection For Speed And Ease Of Installation.

Item #	99600
Brand	WFCO
Model	WF-9560-AD-S-B
Features	Provides 60 Ampere And A Clean, Constant 13.6 Volt DC Nominal Output For Reliable Operation Of Electronics And Appliances Three-Stage Charging Extends The Life Of Your Battery With Output Voltage Modes Of 13.2 Volt DC Range “Float” Mode, 13.6 Volt DC Range “Absorption” Mode, And A 14.4 Volt DC Range “Bulk” Charge Mode Maintains Peace And Quiet, As The Cooling Fan Runs Only When Needed Additionally, The 9500 Series Features A Zero-Clearance, Front Ventilation System So There Is No Wasted Space Around The Unit This Model Brings You The Convenience Of Built-In AC And DC Distribution Two 50 Ampere Main AC Breakers And A Total Of Up To Twelve AC Branch Circuits, When Using Duplex Breakers, Can Be Installed Converts: 105-130 Volt AC To 13.2-14.6 Volt DC Continuous Output Power: 1030 Watt Ampere Rating: 60 Amp Remote On/Off Capable: No With USB Port: No With Volt/Watt Meter: No With Short Circuit: Yes With Reverse Battery Protection: Yes With Thermal Protection: Yes With Battery Cables: No With Built-In Charger: Yes With Fuse: No
Dimensions	Length: 9-3/4 Inch Width: 11-7/8 Inch Height: 14-1/2 Inch
Warranty	Limited 2 Year Warranty
Special Order Item	No
