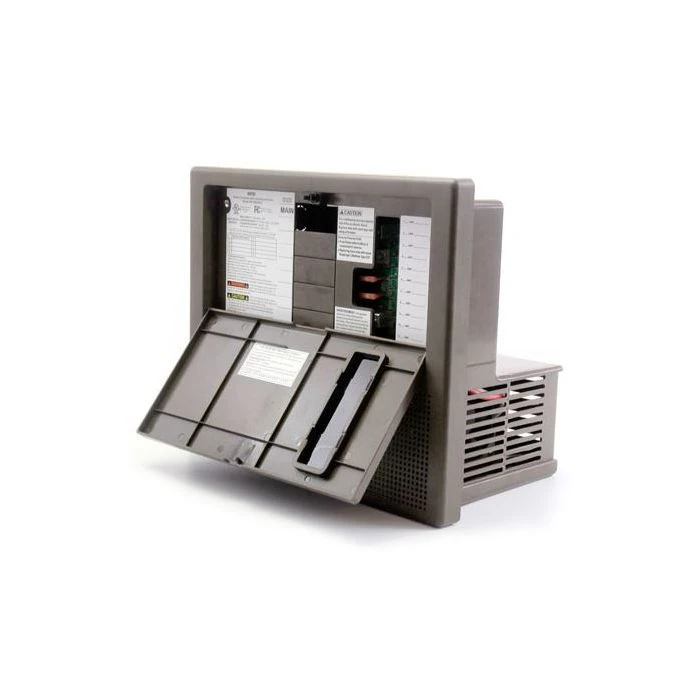

WFCO Brown 8900 Series 55 Amp Power Center

The WF-8955 model provides 55 amps and a clean, constant 13.6V DC nominal output, for reliable operation of electronics and appliances. Automatic three-stage charging extends the life of your battery with output voltage modes of 13.2V DC range “float” mode, 13.6V DC range “absorption” mode, and a 14.4V DC range “bulk” charge mode. The 8900 Series also maintains peace and quiet, as the cooling fan runs only when needed.

FCC Class B compliance for every power center model means that the units are designed not to cause interference with televisions, radios or other signals. Electronic current limiting automatically shuts down the power during overload or short-circuit conditions, protecting the life of your power center and electrical system.

The 8900 Series models provide AC and DC distribution with innovative features. They can accommodate a 30-amp main AC circuit breaker and up to five branch circuits. Eleven-branch DC circuits are available with LED lights for each DC circuit to illuminate and identify open circuits.

*Power center does NOT include individual fuses or breakers.

Item #	65466
Brand	WFCO
Series	WF-8900
Model	WF-8955-AD
Replaces	WF-8955PEC
Style	Distribution Panel
Input	105-130 Vac, 60 Hz, 950 W
Output Amperage	55 Amps (Output Power: 950 W)
Color	Brown
Features	Converter Type: Three-Stage Converter Charger Voltage Output: 13.2 – 14.4V DC Range Absorption Mode (Nominal Voltage): 13.6V DC (nominal voltage) Bulk Mode (Quick Charging Voltage): 14.4V DC (quick charging voltage) Float Mode (Trickle Charge Voltage): 13.2V DC (trickle charge voltage) Over Current : Yes Over Temperature: Yes Over Voltage : Yes Reverse Polarity: Yes Cooling System: Yes AC Circuits (twin breakers): 1 main and 5 branch circuits DC Circuits (Quantity): (2 30A max), 11 (9 20A max) Case Material: Plastic Case Color: Brown Certifications : FCC All models are UL and cUL-Listed and FCC Class B compliant
Included	*Power center does NOT include individual fuses or breakers.
Dimensions	Outer dimensions: 13.875" W, 11.625" H, 9" D Rough opening:12.25" x 11" x 7.375"
Warranty	2 Year
Net Weight	7
Special Order Item	No
UPC	816227010094
