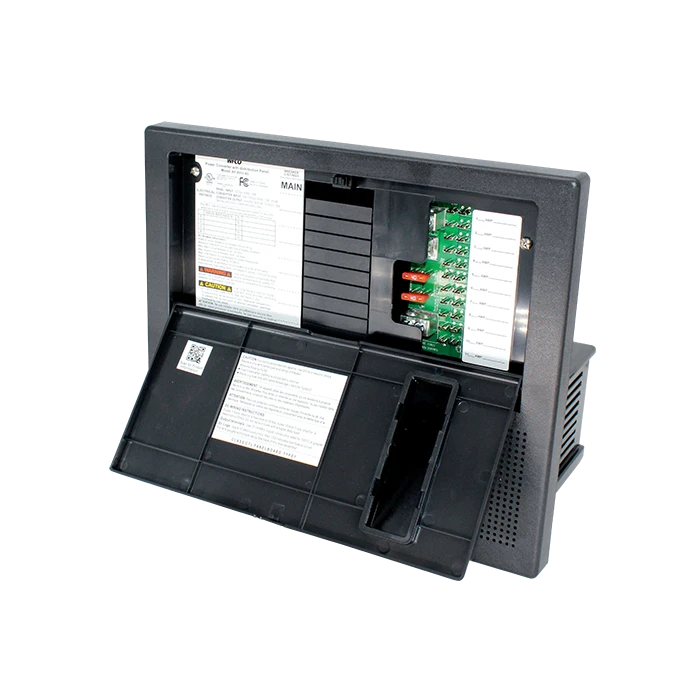

WFCO 8900 Series 65 Amp Power Center w/ Battery Auto Detection

The WF-8900 series power converter features eleven DC circuits which include two 30 Amp DC circuits, allowing more higher power consuming appliances to be installed (i.e. slide out motors, electric awnings, and beds etc.).

WFCO has now brought to the table the industries first, Patent Pending Auto-Detect Technology. This new microprocessor driven technology will recognize lithium ion and lead acid battery chemistries and automatically adjust the charging profile to match the battery type.

The LED warning lights allow you to easily see when there’s a problem so it can be fixed.

WFCO’s higher output 8900 series power center models WF-8965-AD and WF-8975-AD have a zero clearance space-saving design. The airflow system draws in cool air and expels warm air from the front. Space is not needed behind the WF-8967/75-AD models for warm air exhaust. The cooling fan operates only when the electric load requires it, avoiding temperature spikes and providing quieter operation.

Item #	99689
Included	(1) Power Center *Power center does NOT include individual fuses or breakers.
Return Policy	30 Days (After Delivery)
Special Order Item	No
Net Weight	7.1 lbs
Warranty	Limited 2 Year Manufacturer Warranty
Cutout	12-3/16" x 10-7/8" x 7-1/4"
Dimensions	14.17" W x 11.81" H x 8.5" D
Features	Auto-Detect Technology: Will Recognize if the Battery is Lithium-ion or Lead-Acid and Will Automatically Adjust the Charging Profile to Match the Battery Type Converter Type: (LA/LI) Three-Stage Intelligent Charge/Two-Stage Intelligent Charge AC Circuits (Twin Breakers): 10 Total = (1) Main and (9) Branch Circuits DC Circuits (Quantity): 11 Total = (2) 30A Max and (9) 20A Max Case Material: Plastic Certifications: UL and cUL Listed and FCC Class B Compliant
Brand	WFCO
Color	Black
Output Amperage	(LA/LI) 65A / 60A
Input	105-130 VAC / 60 Hz (1110 Watts)
Style	Distribution Panel
Model	WF-8965-AD
Series	WF-8900-AD Series
UPC	816227013026
