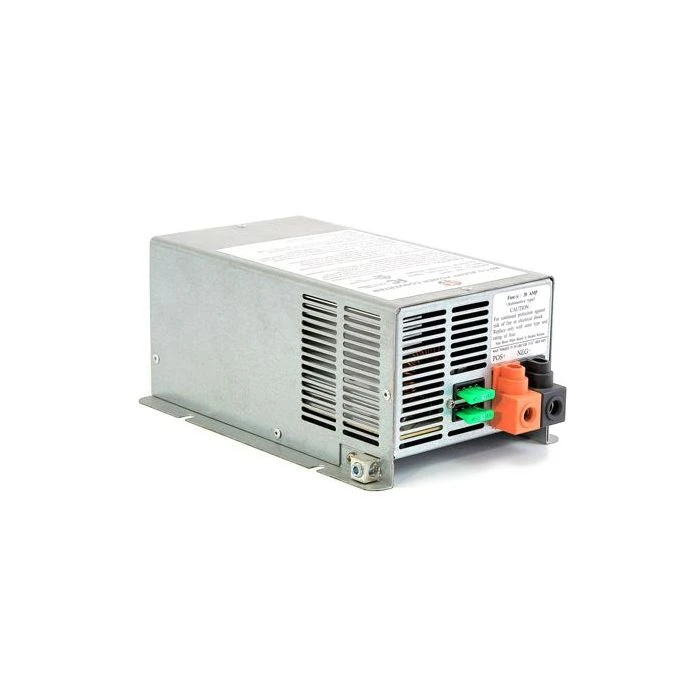

WFCO 45 Amp Converter/Charger

The WF-9845 model provides 45 amps of clean, reliable DC power, which is ideal for powering electronics and appliances. The 9800 Series provides clean power, even without filtering from a battery. Quiet operation is assured as the cooling fan runs only when needed.

Another advantage is FCC Class B compliance for the WF-9845 model, which means that the converter is designed not to cause interference with televisions, radios or other signals. Automatic three-stage battery charging maintains your battery’s life with three nominal voltage output modes: 13.2V DC “float” mode, 13.6V DC “absorption” mode, and a 14.4V DC “bulk” charge mode. Electronic current limiting automatically shuts down the power during overload or short-circuit conditions.

Item #	17295
Brand	WFCO
Series	9800
Model	WF-9845
Style	Deck Mount
Input	105-130 Vac, 60 Hz, 780 W
Output Amperage	45 Amp
Features	Converter Type: Three-Stage Converter Charger Voltage Output: 13.2 – 14.4V DC Range Absorption Mode (Nominal Voltage): 13.6V DC (nominal voltage) Bulk Mode (Quick Charging Voltage): 14.4V DC (quick charging voltage) Float Mode (Trickle Charge Voltage): 13.2V DC (trickle charge voltage) Over Current : Yes Over Temperature: Yes Over Voltage : Yes Reverse Polarity: Yes Short Circuit: Yes Cooling System: Yes Certifications : FCC All models are UL and cUL-Listed and FCC Class B compliant
Dimensions	5.9˝ wide; 3.9˝ high; 8.6˝ deep
Warranty	2 Year
Net Weight	5.25
Special Order Item	No
UPC	816227010216
