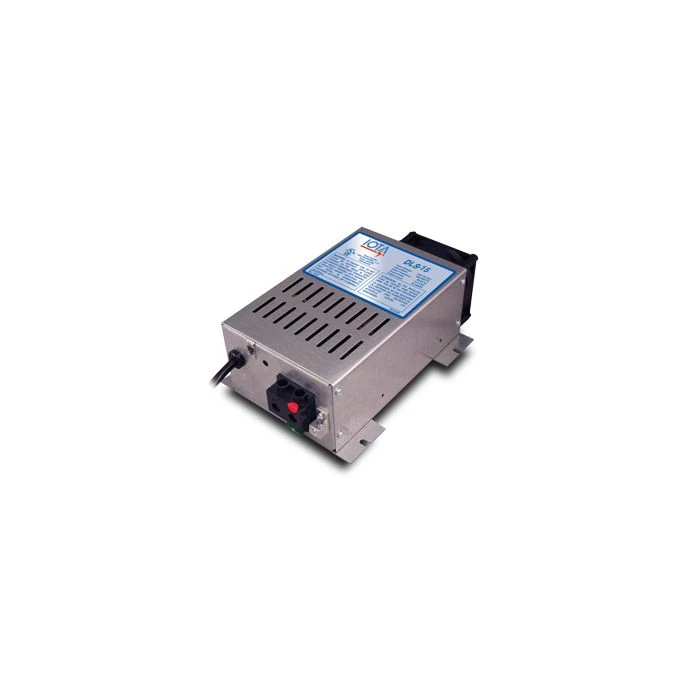

IOTA 30AMP Converter-Charger

As a power supply, the unit’s tightly controlled regulation allows the user to operate a nominal 12VDC load up to 30 amps.

As a battery charger, the unit will maintain the battery, delivering its full-rated current when the battery capacity falls sufficiently low. The voltage is set to deliver its maximum current for the necessary period of time to minimize undue stress to the battery caused by heating of its cells. This helps to ensure the longest possible life of the battery. Over time, as the battery nears its full capacity, the DLS-30 will automatically drop the current, providing a float-charge to the battery to prevent self-discharge of the cells.

Item #	91287
Brand	IOTA
Model	DLS-30
Features	Switch-mode technology Exceptionally clean DC output Tight line-load regulation Quickly and efficiently charges batteries Designed to withstand low transient AC line voltage Current limit and thermal/overload protection Lower operating temperature Quiet fan operation External reverse polarity fuse protection from incorrect battery connection High and normal-stage charging jack
Included	DC Output Voltage (No Load) approx. 13.6V (DC) Output Voltage Tolerance (No Load) + or – .7% Output Amperage, Max Continuous 30 Amps Output Voltage (Full Load) approx. >13.4V (DC) Maximum Power Output, Continuous 400 Watts Ripple and Noise <50 mV rms Input Voltage Range 108-132V (AC) Input Voltage Frequency 47-63 Maximum AC Current @ 108VAC 7.3 Amps Typical Efficiency >80% Max Inrush Current, Single Cycle 30 Amps Short Circuit Protection Yes Overload Protection >100% Line Regulation 100 mV rms Load Regulation <1% Fan Control Proportional Thermal Protection YES Working Temperature Range 0°- 40°C Storage Temperature -20° to 80°C Withstand Voltage (VDC)* 1700/1700/500 Dimensions 9.7" x 6.7" x 3.4" Weight 4.5 lbs
Warranty	2
Net Weight	5
Special Order Item	No
UPC	040232430022
