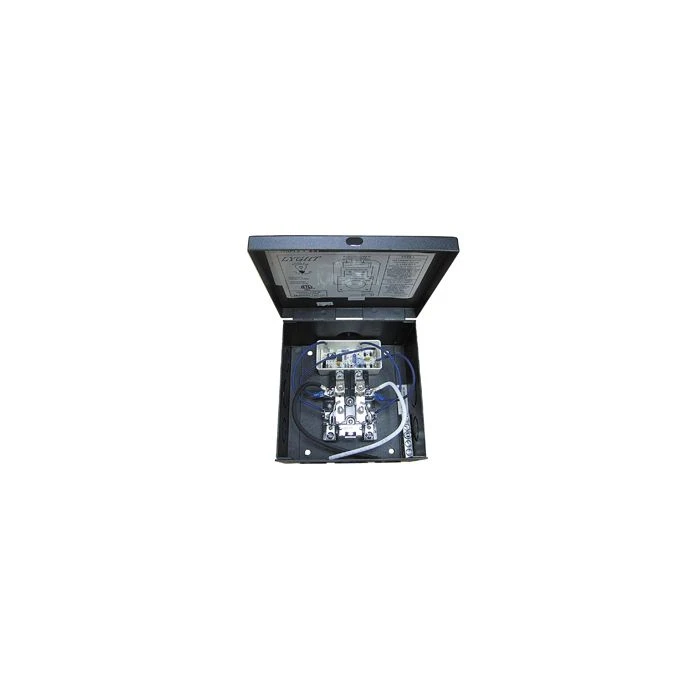

Esco LYGHT 30A Relay Base Automatic Transfer Switch
The LPT30 is primarily designed for installation in conjunction with a generator having a rated output of not larger than 4.5kw, an external power cord having a rated output of not larger than 120VAC, 30A, 1PH, 60HZ and an electronic inverter having a rated output of not larger than 3600 watts.
Contractors: General purpose DPDT 30 amp relay
Coil: 110VDC, 2 watts
Time Delay: Custom time delay, 30 seconds nominal may bypass time delay with switch on board
Physical Size: 6″ x 6″ x 3″
Knockouts: 1/2″ and 3/4″
Cautions:
Install vertically or horizontally in a dry, accessible area.*Maximum service 120 VAC, 30AMPS single phase: must be used with a circuit distribution panel having a main breaker rated 30AMPS-1 Pole, or less. Suitable for installation in conjunction with power supplies having rated outputs not larger than 120VAC, 30AMPS.
