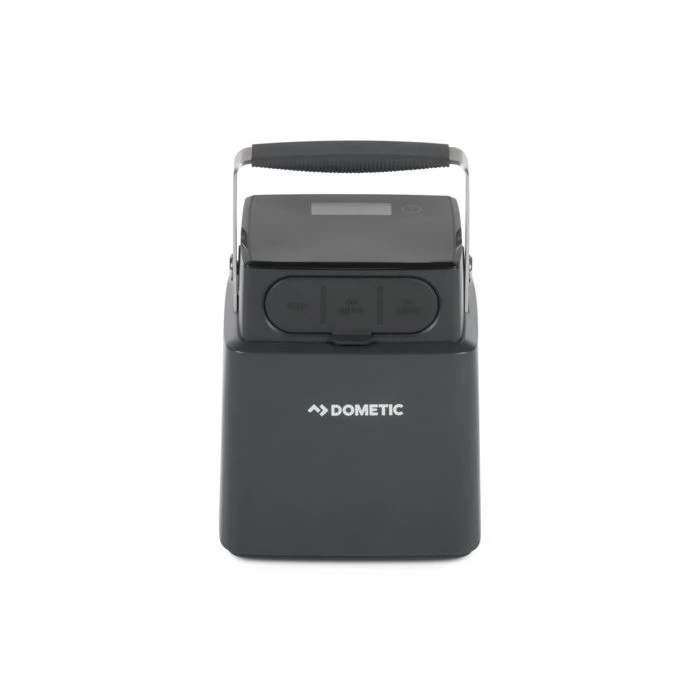

Dometic PLB40 Portable Battery Management System

The Dometic PLB40 has powerful, integrated Lithium Iron Phosphate (LiFePO4) battery cells, providing an energy supply of 40Ah/512 Wh. Ideal for powered coolers and other 12 V appliances while on adventures, the PLB40 provides a weekend of power or longer for a Dometic CFX on a single charge. The integrated DC-DC charger offers three convenient ways to charge via: the vehicle’s 12 V DC socket, a solar panel or AC home power. The battery’s integrated Battery Management System protects the PLB40 from under-voltage, over-voltage, short circuiting and overheating for optimum charge time, performance and storage. With this power management system, the Dometic PLB40 has a cycle of life up to four times longer than more commonly used lithium ion batteries.

Item #	97100
Brand	Dometic
Model	9600014024
Voltage	12V
Capacity 20 hr Rate	33 AH
Features	Enables you to travel off-grid for longer Three-way charging via 12 V socket, solar panel or AC house power Extremely lightweight, ergonomically designed stainless steel carry-handle Built-in LCD screen displays: capacity, charging status and output Specifically designed for Dometic CFX and other powered coolers Powerful battery cells provide 512 Wh of energy, 40 Ah Can power a Dometic CFX 40W cooler for up to 40 hours on a single charge Chemistry: LiFePO4 Capacity: 40Ah/512Wh Voltage: 12.8V Cycle Life: 2,000 cycles DC Input Voltage Range: 8-25V DC Input Max Amperage: 8A AC Input Voltage: 100-240V DC Output Voltage: 12.8V DC Output Amps: 15A DC Output Continuous: 150W DC 12V Output: 15A DC 12V 2-pin Output: 15A USB 5V Outputs x 2: Single 2.4, 4.2 Overall
Included	(1) Portable lithium iron phosphate battery pack (1) DC charge cable (1) AC power supply unit (1) 2x DC Fuse
Dimensions	Dimensions (L x H x D): 7.75" x 10" x 7.75"
Warranty	2 Years
Special Order Item	No
UPC	713814269661
LTL Freight	Yes
